HAWK’s Fiber Optic Sensing Solutions

Fiber Optic Sensing is a relatively new facet of industrial instrumentation that allows for real-time measurements of long assets such as pipelines, conveyors, and perimeters. HAWK’s Praetorian Fiber Optic Sensing System is the only system on the market that offers a single interrogator that measures Distributed Acoustic Sensing (DAS), Distributed Temperature Sensing (DTS), and Distributed Strain Sensing (DSS) all in a single enclosure.

The advantage of making these measurements in a single system means that parallel measurements of strain, temperature, and acoustics may be made in their most basic form by a single processor in real-time allowing for better pattern recognition, resulting in faster acquisition and confirmation of events. Another advantage of HAWK's Praetorian Fiber Optic Sensing System is that it ignores false alarms, resulting in one of the most accurate and trustworthy systems on the market.

This revolutionary technology can protect assets, equipment, and perimeters. HAWK’s Fiber Optic System is modular in design and can monitor up to 10km (6.2 mi) in real-time 24/7. This type of intelligent monitoring is critical to operating efficiently and protecting valuable assets.

Features of HAWK's Fiber Optic Sensing

  • Proven ROI by predicting breakages and failure BEFORE occurring

  • Immune to the effects of a broken or cut fiber

  • Ignores False Alarms

  • System is passive, no electricity is required in the field

  • Self-diagnostics monitor the unit’s condition and maintain optimum performance

  • No maintenance or calibration is required after commissioning

  • Monitor up at 80km (50 mi) at the same time.

  • 24/7 real-time monitoring

Fiber Optic Sensing Applications

  • Conveyors

  • Pipelines (above ground or buried)

  • Perimeters

  • Fences

  • Roads

  • Railways

  • Tunnels

  • Bridges

  • Power Cables

Praetorian Fiber Optic Sensing Conveyor Health Monitoring System

The Praetorian Conveyor Health Monitoring System (CHMS) is a plant & site-wide single solution for detecting when critical parts of the idler are beginning to fail. The early detection warnings allow operators to control downtime and avoid catastrophic costly unplanned shutdowns. HAWK's Praetorian Fiber Optic Sensing detects abnormalities in conveyor idler performance that other technologies cannot.

Industries

  • Coal mines, hazardous area suitable (no infield electronics)

  • Hard rock mines

  • Quarries

  • Buildings

  • Unmanned material handling facilities

  • Processing plant conveyors

Praetorian Fiber Optic Sensing for Perimeter Security and Threat Detection

The Praetorian Fiber Optic Sensing System can be installed along a fence or perimeter and can detect, identify and report any movements. This system has limitless applications and can be installed on anything from explosive storage areas to farms and ranches. The fast processing speed and pulse rate allow the Fiber Optic System to detect minute interferences that may otherwise go unnoticed. Some examples of detectable activates include intruder movement along a perimeter, intruders cutting or climbing a fence, vehicle movement along a perimeter and digging, excavating or trenching. The Fiber Optic Sensing system is crucial for keeping valuable assets secure and protected.

Industries

  • Army barracks

  • Airports

  • Prisons

  • Explosive storage areas

  • Country borders

  • Hazardous areas

  • Unmanned sites

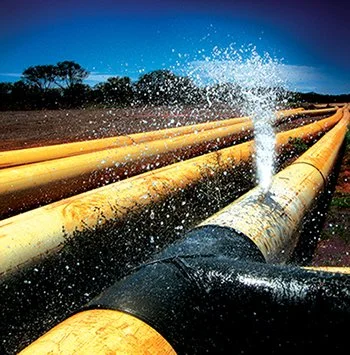

Praetorian Fiber Optic Sensing for Pipeline Monitoring and Leak Detection

The Praetorian Fiber Optic Sensing System can be installed on a buried or unburied pipeline and can immediately detect pipeline leakage, ground disturbances, manual and machine excavation, theft, hot tapping and vehicle movement. The Fiber Optic System continually monitors large spans of pipeline, looking for vibration and temperature changes. Once a detection occurs, the system alerts the operator or security personal to the exact location of disturbance in the pipeline. This type of real-time intelligent monitoring is critical to operating efficiently and protecting valuable assets.

Industries

  • Oil (Crude of refined)

  • Gas (any type)

  • Chemical

  • Mining tailings

  • Water/waste water

  • Brine

  • Slurries

  • Steam

Praetorian Fiber Optic Sensing for Power Cable Monitoring

The Praetorian Fiber Optic Sensing System can monitor buried and unburied data cables, wires and power transmission lines. Monitoring for wear, damage or corrosion of the cable is extremely difficult and often power failure or data outage is the first sign of a problem. These cables are typically installed in areas that have multiple uses by various stake holders and in the event of a failure can be logistically difficult and expensive to access for repair. The Praetorian Fiber Optic Sensing System can be installed either near the power cables or embedded within the power cable itself. It can monitor disturbances, identify manual and machine excavation, vehicle movement, ground condition assessment and detects hotspots. HAWK’s Fiber Optic Sensing System requires no additional field infrastructure such as power or communication and does not require maintenance or calibration after commissioning.

Industries

  • Mining and Minerals

  • Utility Tunnels

  • Transformers

  • HVAC / HVDC

  • Underground and Above ground Power Cables

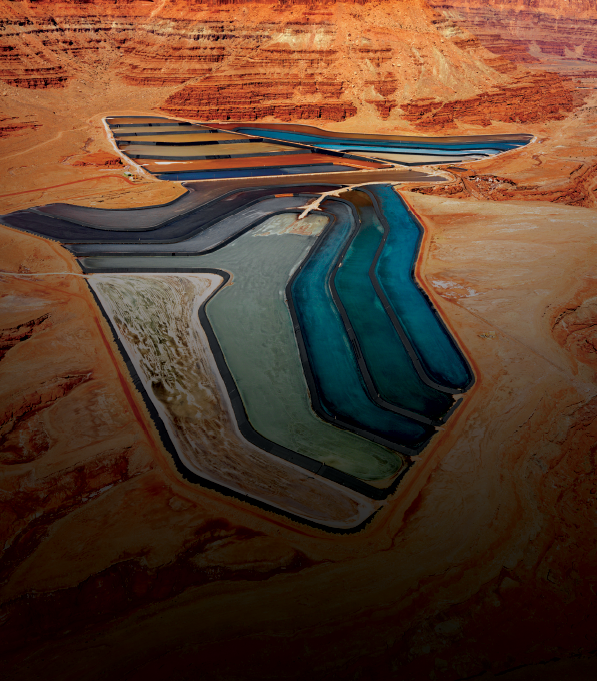

Praetorian Geological Stress Detection System for Tailings Dams Monitoring

Tailings Dams are massive structures used all over for the bulk storage of mineral processing wastes. These earthen structures can measure tens of kilometers in length and width and be hundreds of meters tall. In terms of total volume tailings dams are the largest manmade structures in existence. However, over the last 20 years the rate of tailings dams failing has doubled. Failures of tailings dams are perhaps the worst possible case scenario for any mineral extraction operation. Events causing loss of life in the hundreds or even thousands, Environmental fines reaching billions of dollars and the loss of facility infrastructure and production are a confronting prospect. HAWK has developed a solution to prevent tailings dams failure. HAWK's Praetorian Geological Stress Detection System utilizes fiber optic sensing technology for the real time monitoring of field strain within earthen structures. This revolutionary technology uses fiber optic cables that are then inserted into the structure through drilled boreholes. These cables monitor field strain and deflection caused by dam loading and report both the borehole position and depth where the strain or deflection is occurring within the retaining wall structure. Sensitivities achievable with the Praetorian Geological Stress Detection System means that potential issues with ground shift can be detected and intercepted well in advance of visually symptoms of structural issues.

Industries

  • Coal mines (Hazardous area Suitable)

  • Hardrock Mines

  • Unmanned Tailings Facilities

  • Historical Sites of concern

  • Ecological or safety critical structures

  • Tailings Dams

  • Open Pit Mines (Shelf Stability)

  • Tailings Reprocessing projects

  • Reservoirs

  • Embankments

  • Levies and Flood Barriers
